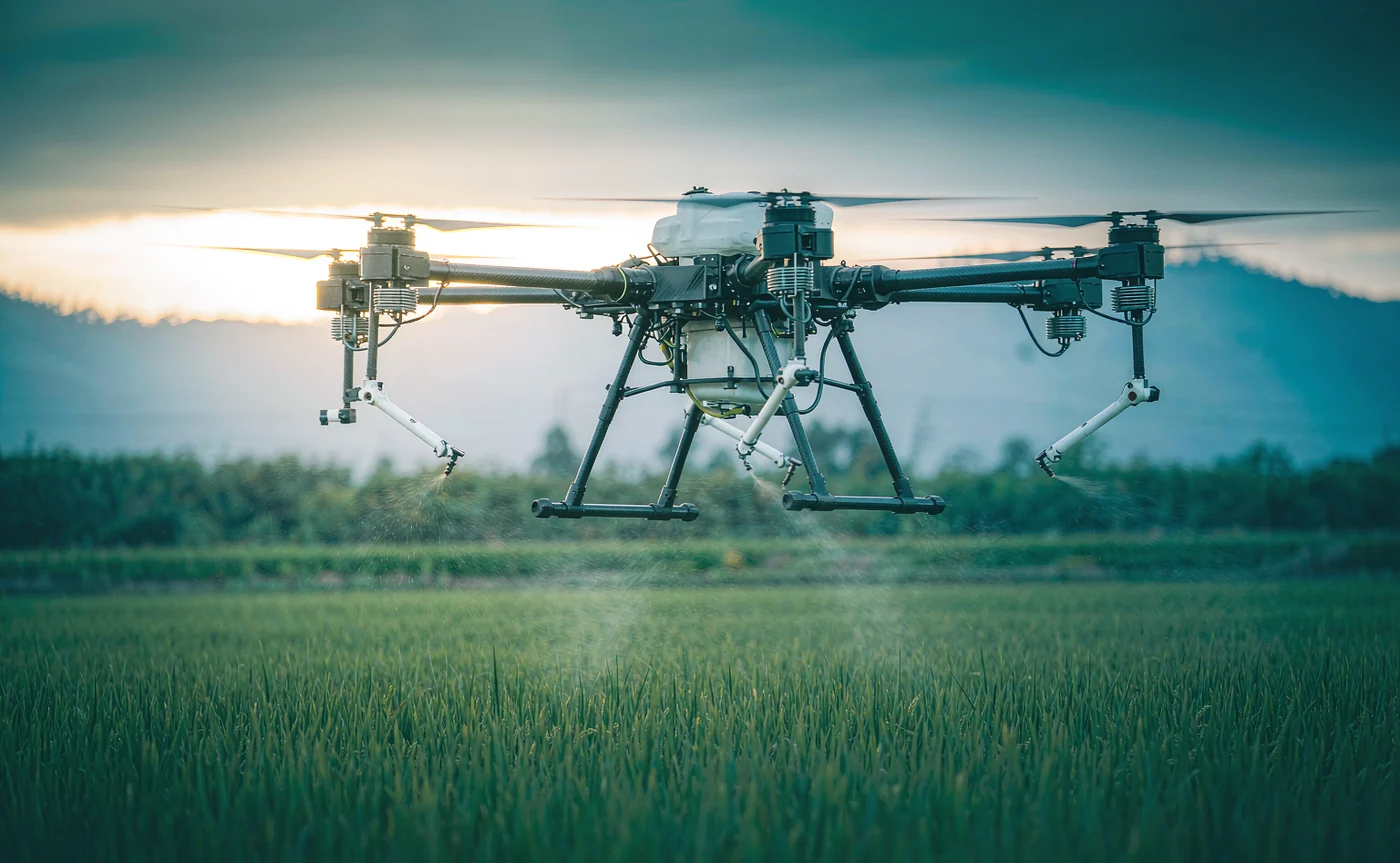

The workhorse for 16–20 L sprayers and heavy-lift inspection platforms. Balanced between thrust density and flight time.
Standard models ship from stock within 48 hours. Production orders: 18 working days for 1–500 pcs, 25 working days above 500 pcs. Custom KV or shaft: add 7 days.
| Model | M6215 |
|---|---|
| Configuration | 24N28P |
| Stator size | Ø62 × 15 mm |
| KV rating | 170 KV |
| Rated voltage | 12S LiPo |
| Max current | 38 A |
| Max thrust | 7.2 kg / rotor |
| Peak efficiency | 10.4 g/W @ 3.8 kg |
| Internal resistance | 62 mΩ |
| Shaft diameter | Ø6 mm |
| Motor weight | 186 g |
| Ingress protection | IPX5 |
| Recommended ESC | JUFOC E60A |
| Recommended prop | 24 × 7.9 in |
Values measured at 25 ℃ ambient, 48 V DC supply, sea level. Full test report available on request.
Optimised magnet arc and 0.2 mm laminations deliver 10.4 g/W at hover — roughly 8 % longer flight time.
Hollow Ø6 mm shaft with dual bearings handles asymmetric prop loads in gusty conditions.
Standard 19 × 19 mm mounting pattern, drop-in replacement for mainstream frames.
We can shift KV by ±15 % with the same stator, or supply a different shaft and connector set from 500 pcs. Engineering review in 3 working days.
Talk to engineeringA true platform motor, the M6215 balances thrust density and endurance for 16–20 L sprayers and inspection drones. It pairs with the E60A controller and CF2388 prop out of the box.
M6215 是真正的平台级电机，在 16–20L 植保机与巡检机之间兼顾拉力密度与续航，出厂即可搭配 E60A 电调与 CF2388 桨叶。
