12N14P brushless outrunner for 6S: 3.7 kg max thrust, 925.9 W peak power, 153 g including leads.
Standard models ship from stock within 48 hours. Production orders: 18 working days for 1–500 pcs, 25 working days above 500 pcs. Custom KV or shaft: add 7 days.
Values measured at 25 ℃ ambient and sea level; actual performance varies with propeller, ESC and battery configuration.

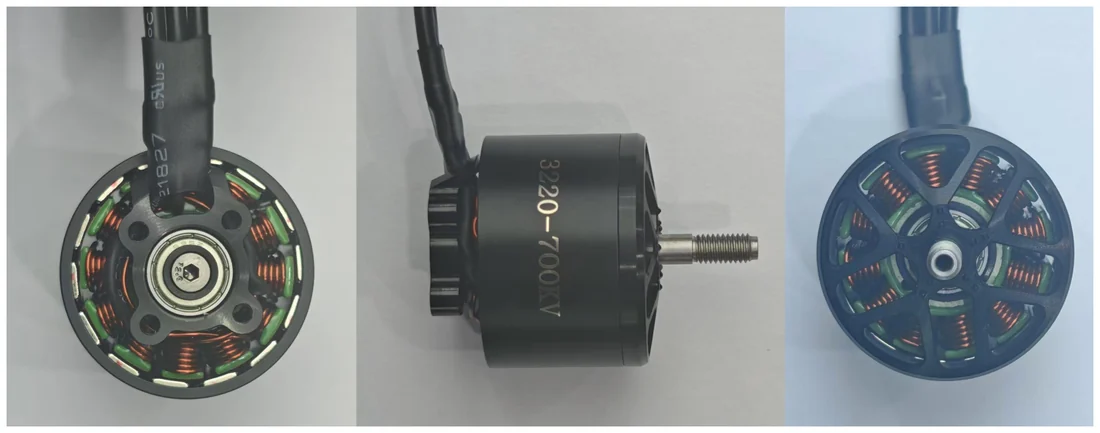

JUFOC 3220 KV700 is a 12N14P brushless outrunner rated for 6S.
The motor uses a φ37.9×52.5 mm stator housing, φ19-4×M3 mounting, M5 propeller mount, 16 AWG 300 mm leads, 153 g including cable.
Electrical data: 700 KV, 1.6 A no-load current at 10 V, 40 mΩ phase-to-phase resistance.
On test it reached 3.7 kg maximum thrust at 925.9 W peak input power.
Every unit is balanced to ≤5 mg and 500 V isolation tested before packing.

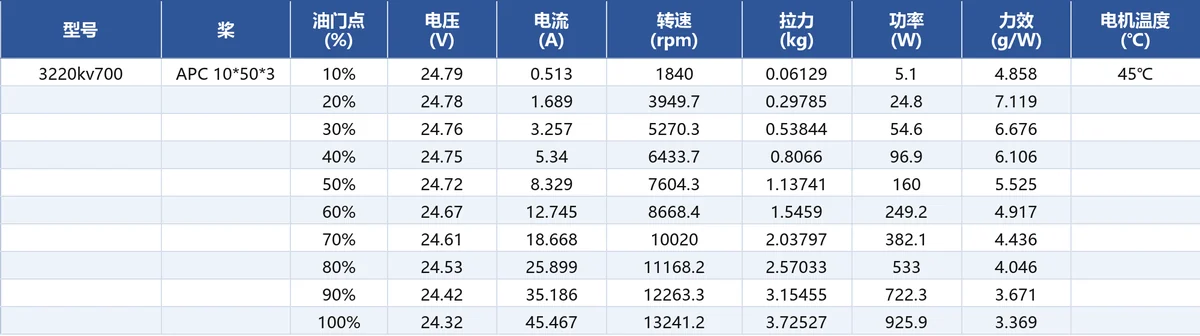

Throttle sweep recorded on the test bench.
Above data measured at 25 ℃ and sea level with variable throttle input, for reference only.
JUFOC 3220 KV700 为 12N14P 外转子无刷电机，适配 6S 电压。
机壳尺寸 φ37.9×52.5 mm；安装孔 φ19-4×M3；桨叶安装 M5；16 AWG 300 mm 出线；含线重 153 g。
电气参数：KV 值 700，10V 空载电流 1.6 A，相间内阻 40 mΩ。
实测最大拉力 3.7 kg、峰值功率 925.9 W。
每台电机均做动平衡 ≤5 mg、出厂前经 500V 耐压测试。
测试台逐点油门扫描实测数据。
以上数据为室温 25℃、海平面高度、变化油门输入调节测得，仅供参考。
