12N14P brushless outrunner: φ60.4×35.3 mm, 323 g including leads.
Standard models ship from stock within 48 hours. Production orders: 18 working days for 1–500 pcs, 25 working days above 500 pcs. Custom KV or shaft: add 7 days.
Values measured at 25 ℃ ambient and sea level; actual performance varies with propeller, ESC and battery configuration.

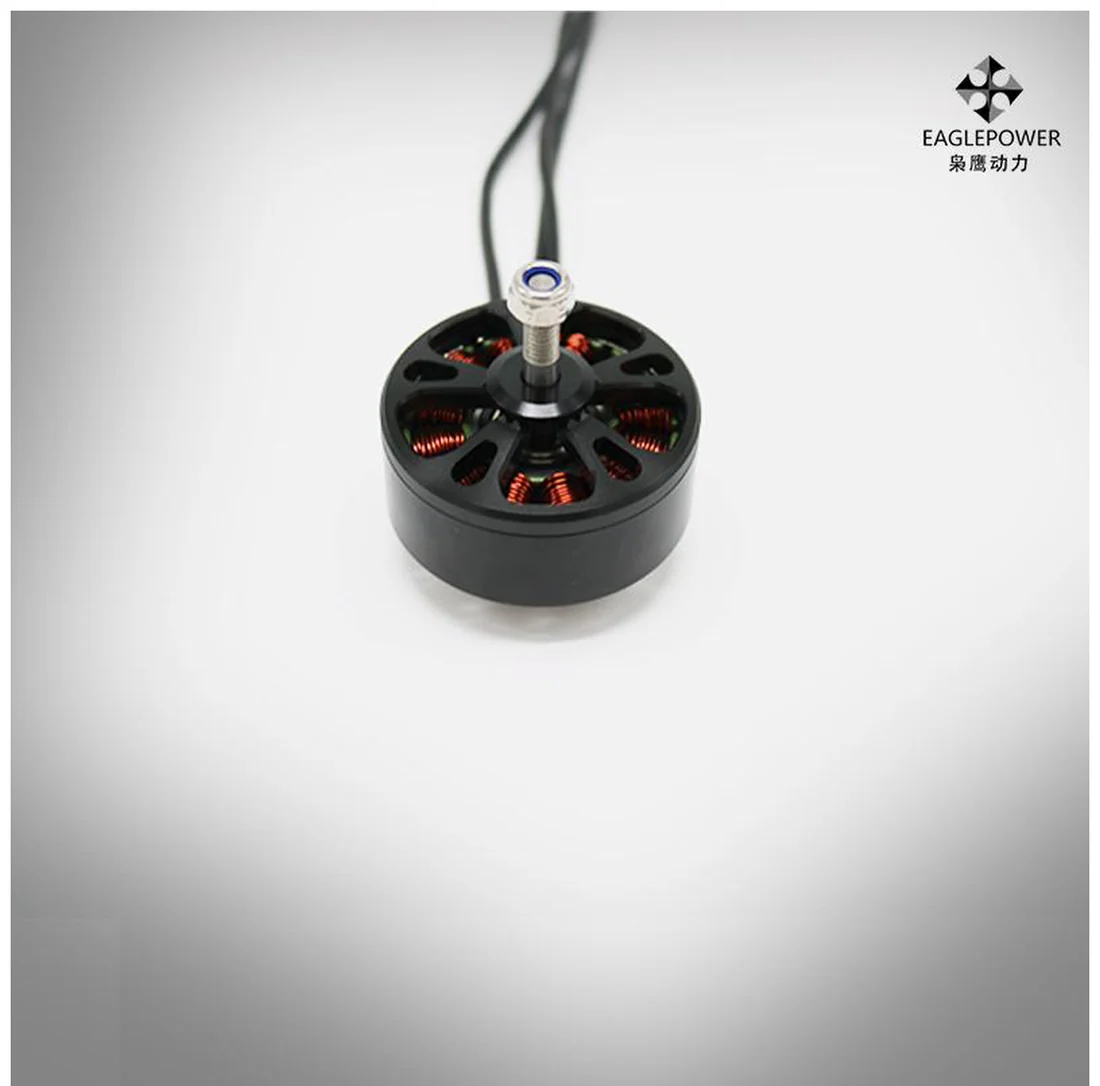

JUFOC SA5315 is a 12N14P brushless outrunner.
The motor uses a φ60.4×35.3 mm stator housing, 14 AWG 400 mm leads, 323 g including cable.

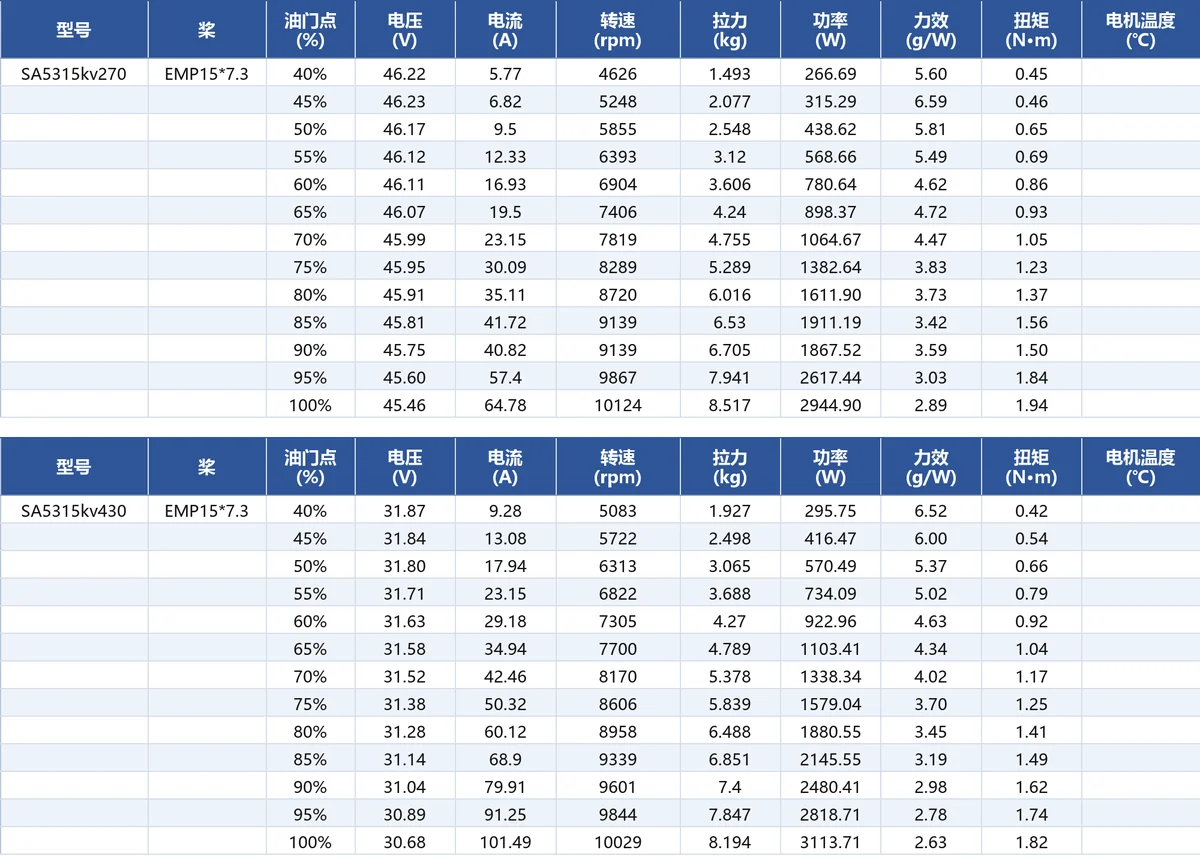

Throttle sweep recorded on the test bench.
Above data measured at 25 ℃ and sea level with variable throttle input, for reference only.
JUFOC SA5315 为 12N14P 外转子无刷电机。
机壳尺寸 φ60.4×35.3 mm；14 AWG 400 mm 出线；含线重 323 g。
测试台逐点油门扫描实测数据。
以上数据为室温 25℃、海平面高度、变化油门输入调节测得，仅供参考。
